Shut-off for F2D-Combat
European Championship in Belgrade



Last update: 14/9 2009

Some shut-off systems seen at the EC 2009 in Belgrade

Results and video from the competition.

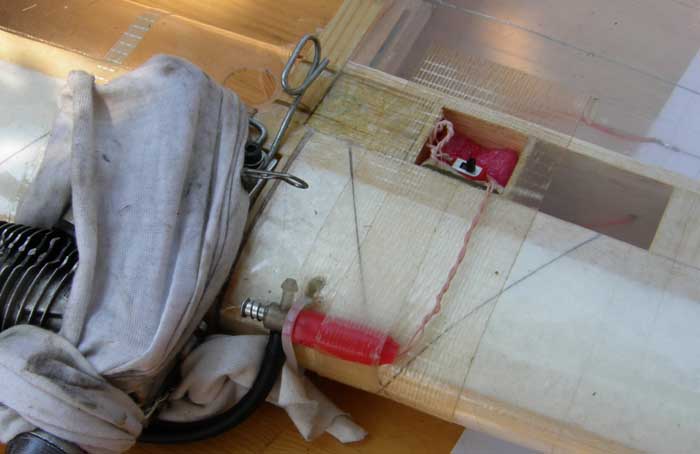

Petris Brokans:

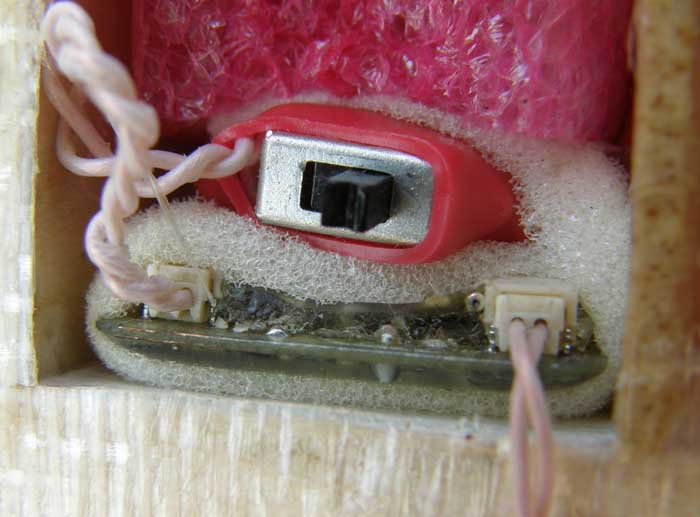

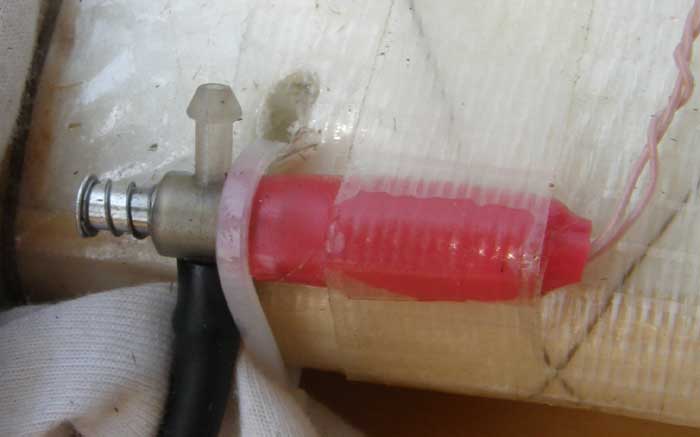

eShut-off from Alex.
The electronic system let the pilot stop the engine right after a flight.








Gordon Price:

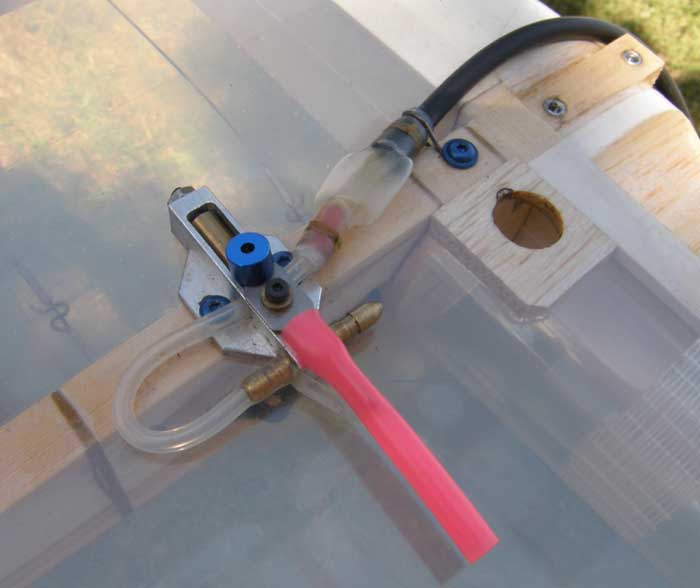

Moving bellcranck system with latex reservoir. Super light weight.


Adjustable shut-off line tension and mini swing-arm (work as a vane in the slipstream from the propeller)

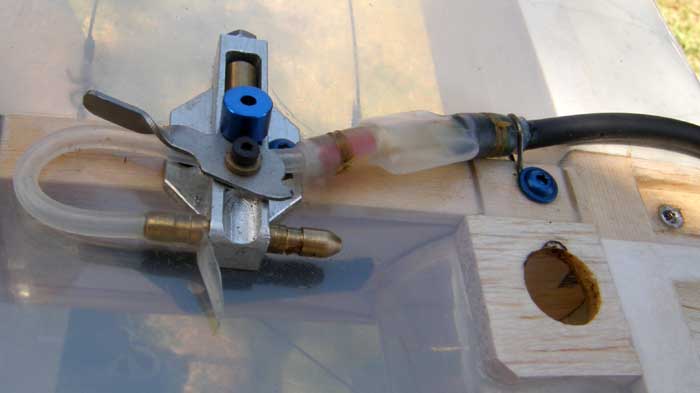

System blocked

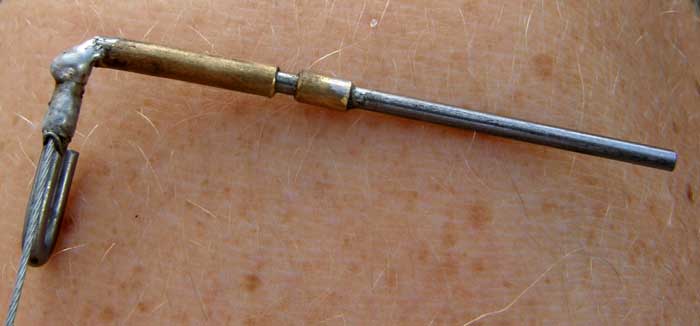

2 mm belcranck pin moving in the 3 mm hole

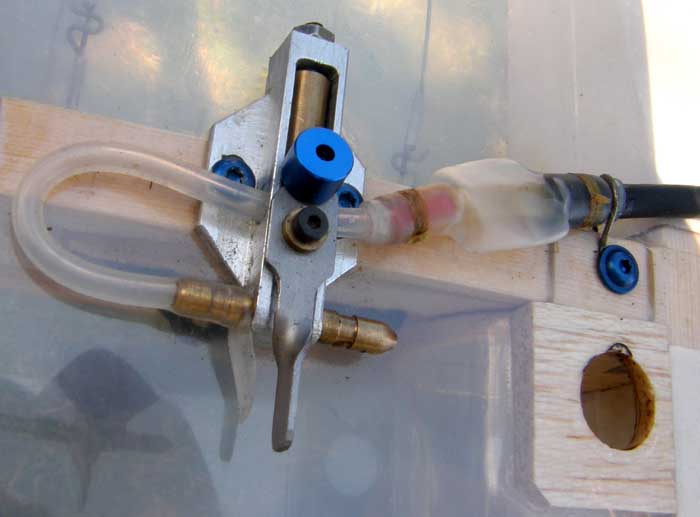

System active


Gordon Price, Scotland


Riera Xavier:

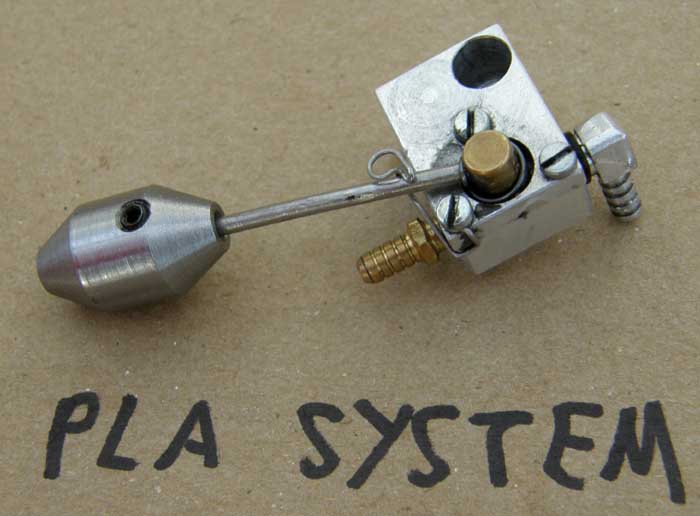

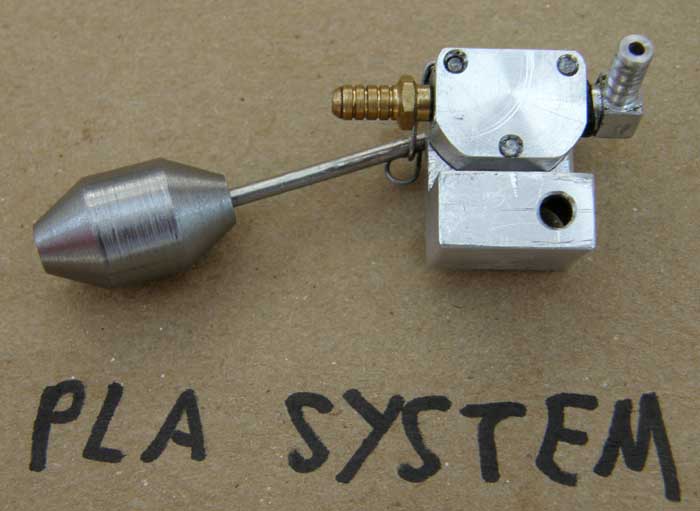

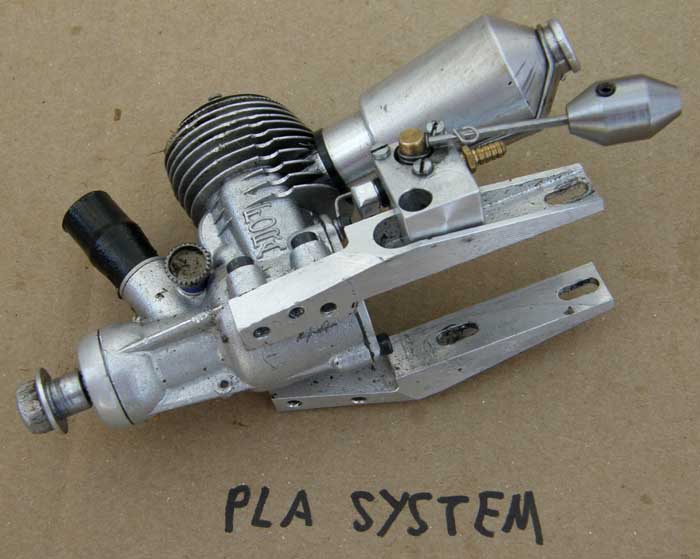

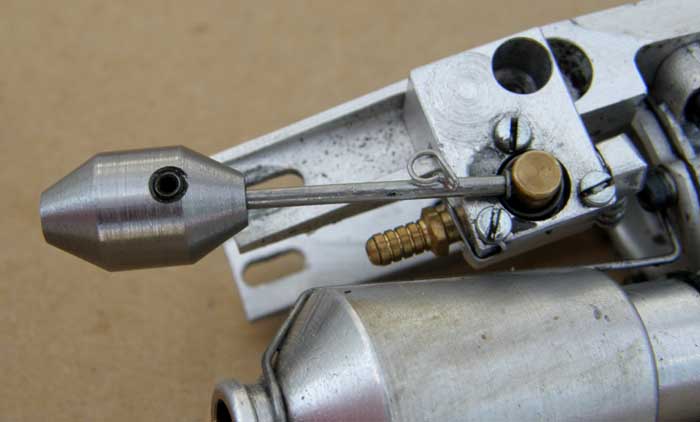

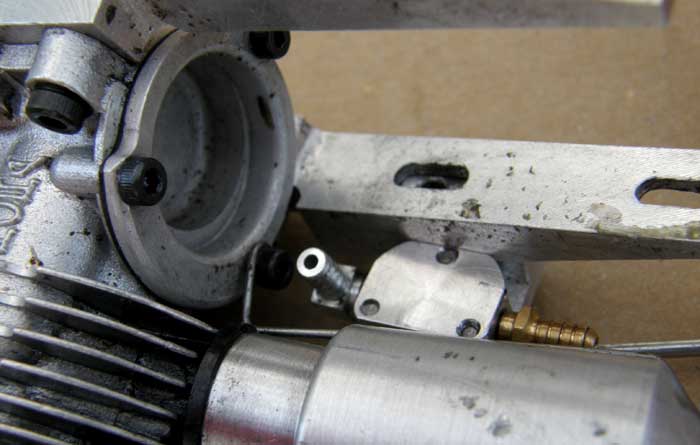

Small swingarm system with valve











Riera Xavier, France

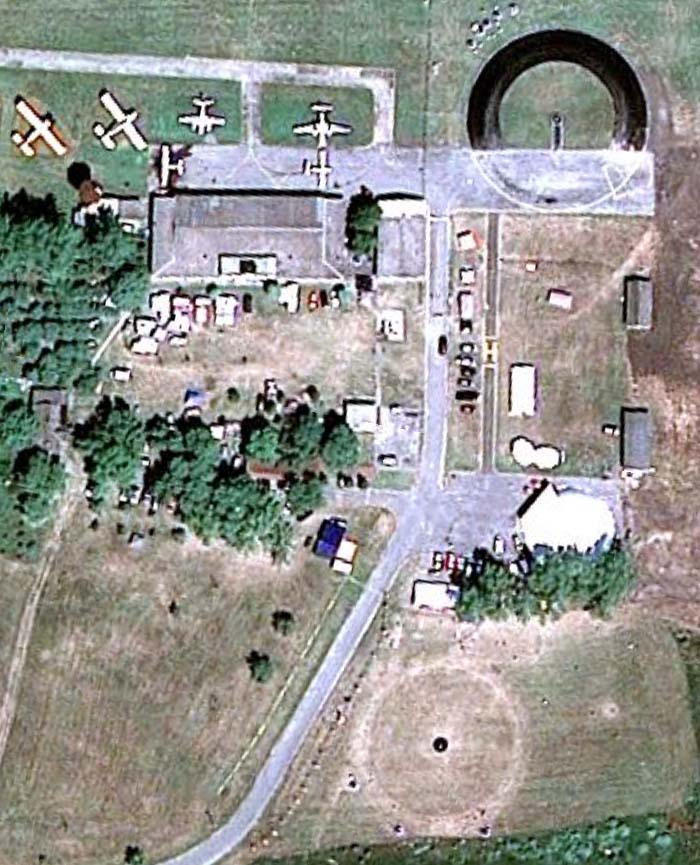

EC-2009 on GoogleEarth


Flying field and camping site. See more on GoogleEarth
