Shut-off for F2D-Combat
Interactive 3D model



An interactive 3D model of the shutoff system is now available for download.

3D model

You can download a combined 3D model and viewer (exe-file) or you can install the eDrawing viewer and just download the 3D model.

3D model:
          eDrawing (1.8 Mb)

Combined 3D model and viewer:
          exe-file (4 Mb) or zip-file (3.9 Mb).

Download the viewer (Its free but you need to register):
          Windows (9.3 Mb) or Mac (26.6 Mb).





  3D model

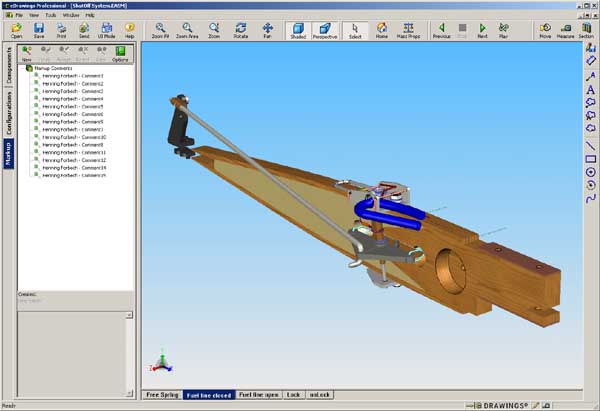

Screenshots from the interactive 3D model

eDrawings

A short
reference guide
to eDrawings.

This 3D model was made with SolidWorks 2006.
You can download the native cad files here(14 Mb zip-file).



  SolidWorks
Copyright and Intellectual Property Policy:

This design was released as "Beer-Ware".

"THE BEER-WARE LICENSE"
This design was made by Henning Forbech.
You can do whatever you want with this stuff.
If we meet some day, and you think this stuff is worth it, you can buy me a beer in return.

  Henning Forbech
Cheers!
