Building the shut-off system into a RTF-model

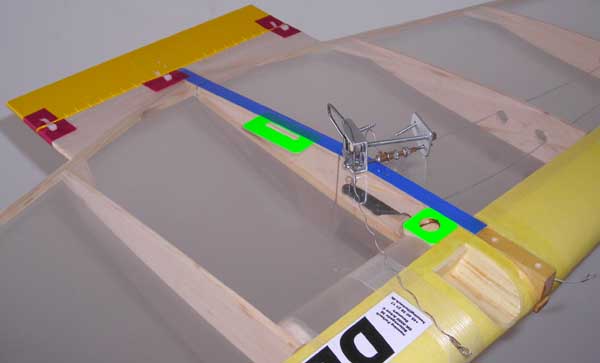

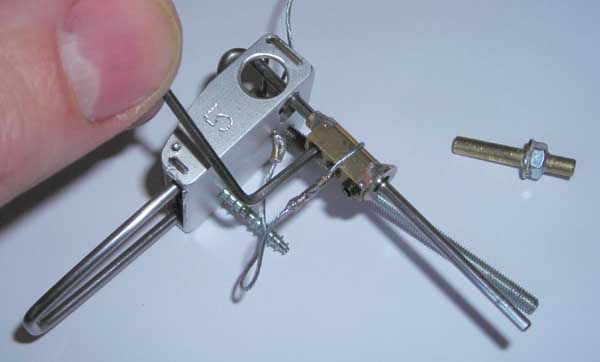

The shut-off system and a brand new model (Yuvenko: "Ukraine Combat")

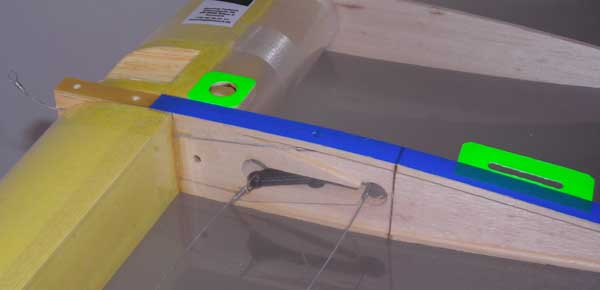

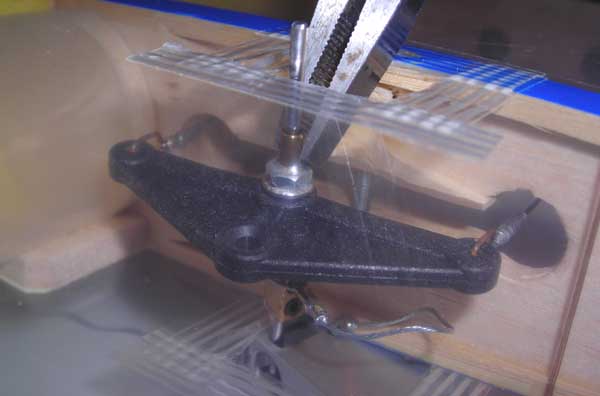

The original bellcrank and safety wire

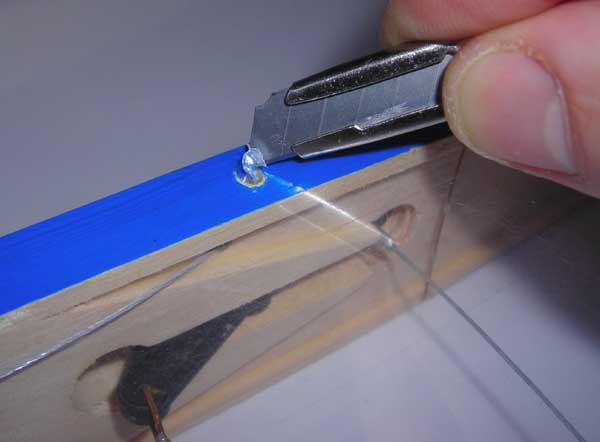

Cut the original bellcrank bar free

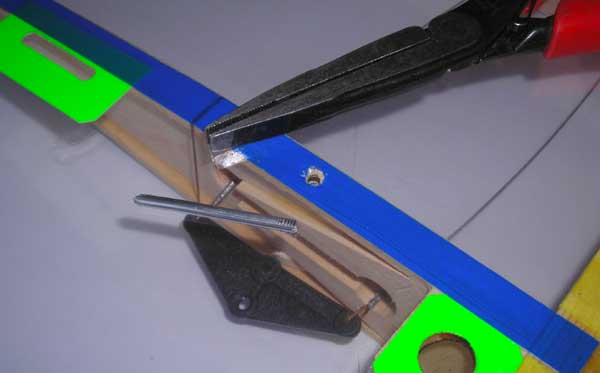

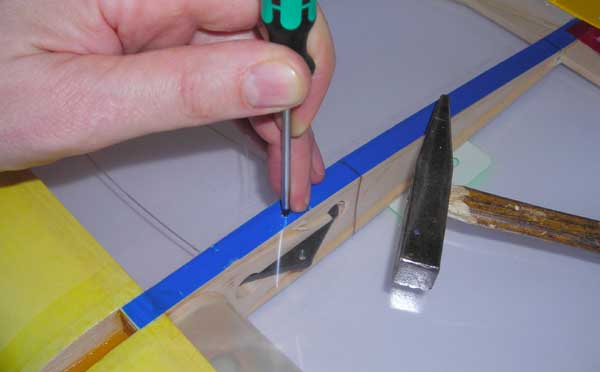

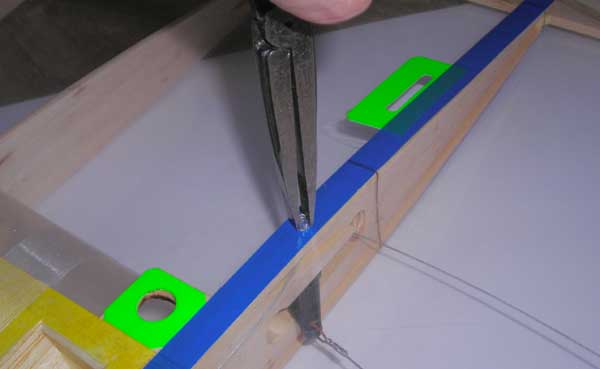

Push or knock the bar free

Pull the bar out

The bar is out and the bellcranck is free

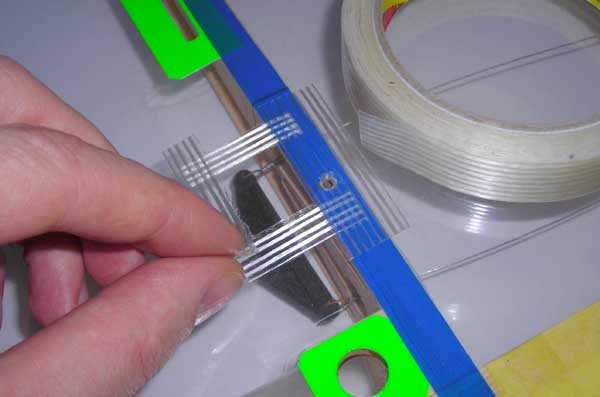

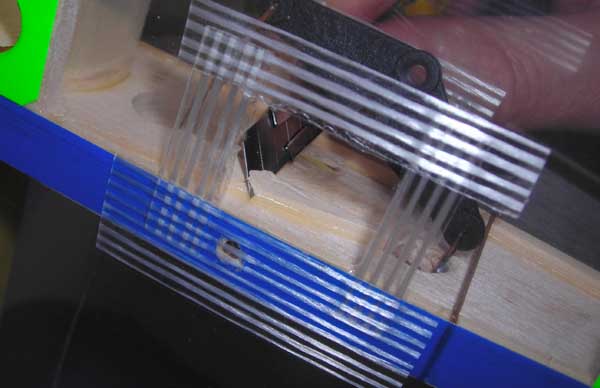

Reinforce the covering with glass fiber tape

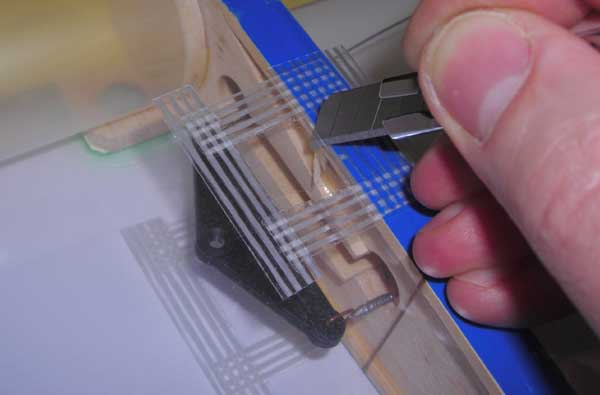

Cut new openings top and bottom

Cut away some of the wood in the center section
(a problem that will be solved with a minor change
in the construction of the next version)

Chamfer these edges to help the belcranck move with the spring

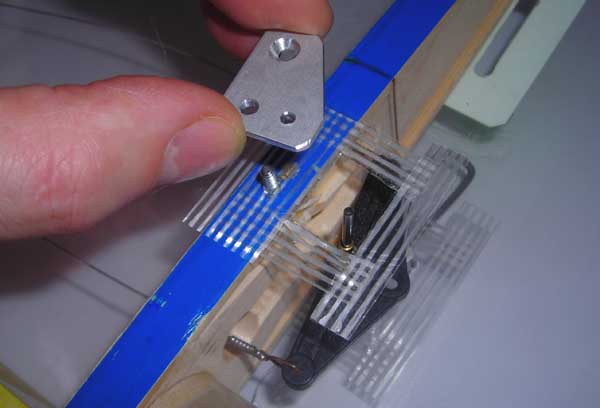

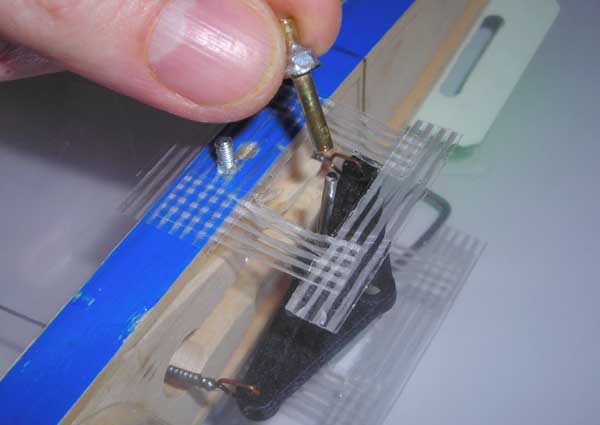

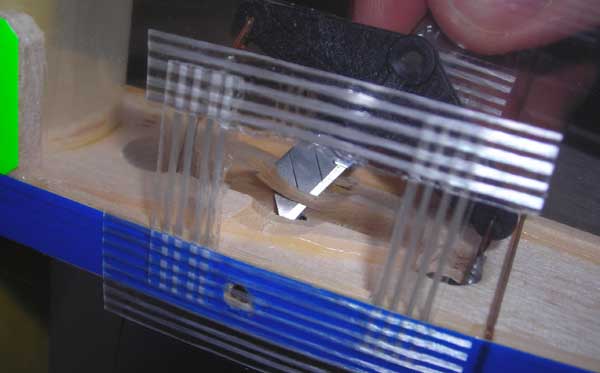

The upper part of the clamp is fixed to the spring

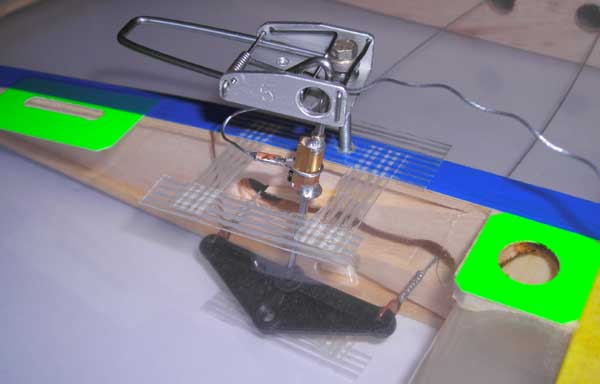

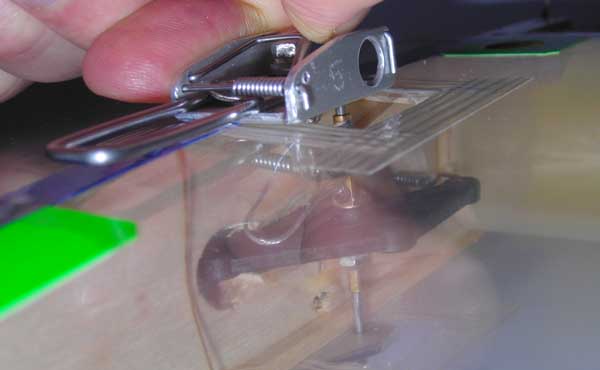

The shut-off goes into the model

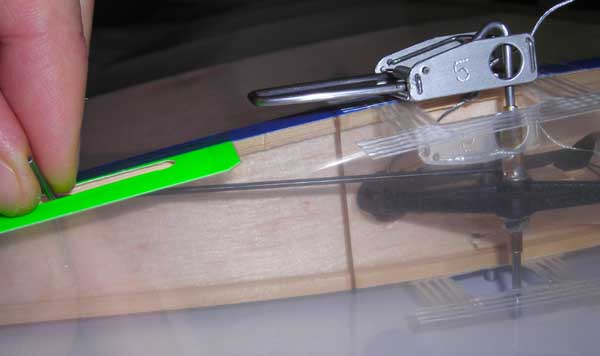

The lower part of clamp is put on to the spring

- and put in place in the bellcrank

Tighten the screw with a hex key through the cutout for the pushrod

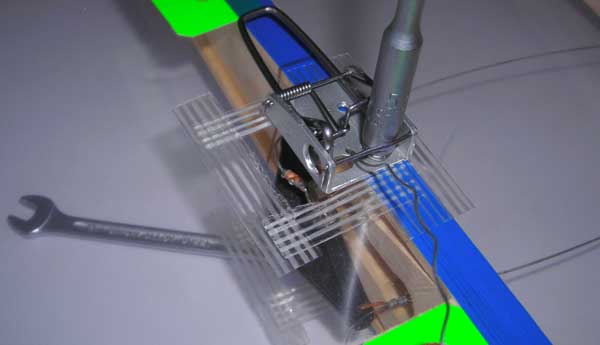

Same operation with an extended key

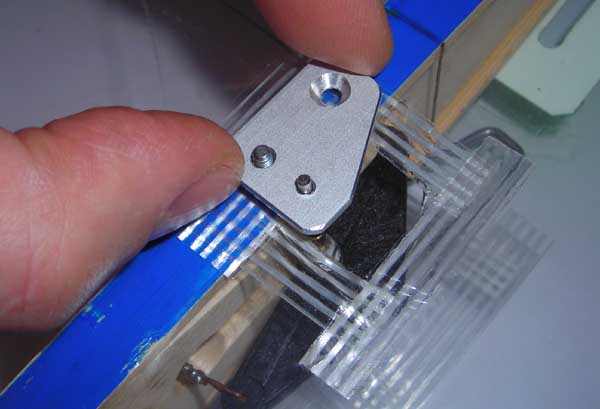

Ready to install the bottom plate. Notice the position of the spring!

Bottom plate in place

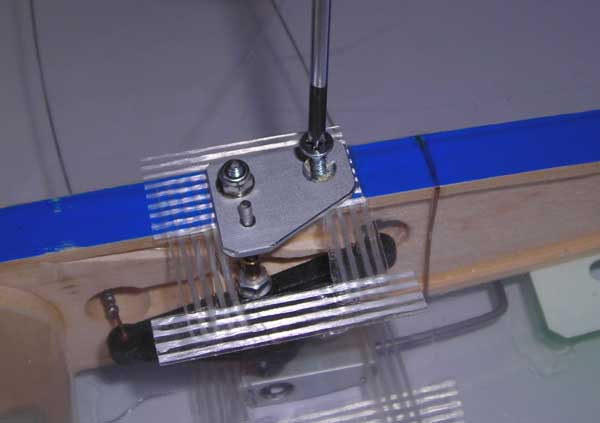

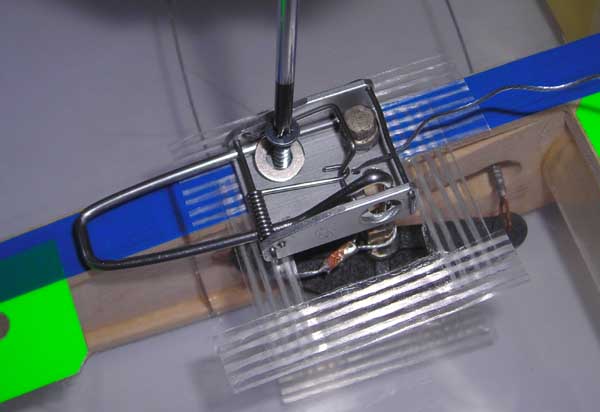

Locking the shut-off system with a M3 nut

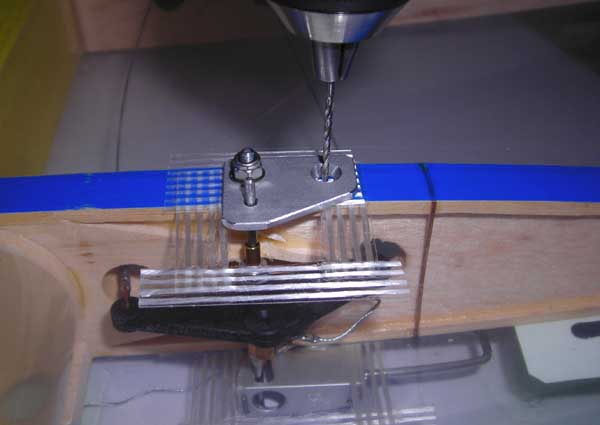

Drill a hold for the wood screw

Put in the screew that will hold the bottom plate in the right position

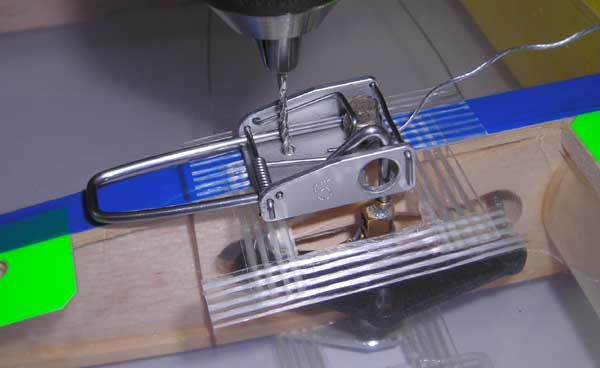

Drill a hold for the wood screw in the upper part

This screw will hold the upper housing and the spring in the right position

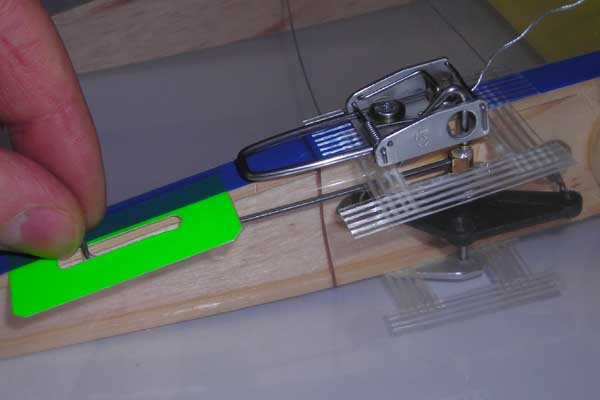

Checking the position of the bellcranck

If necessary, adjust the position of the bellcranck

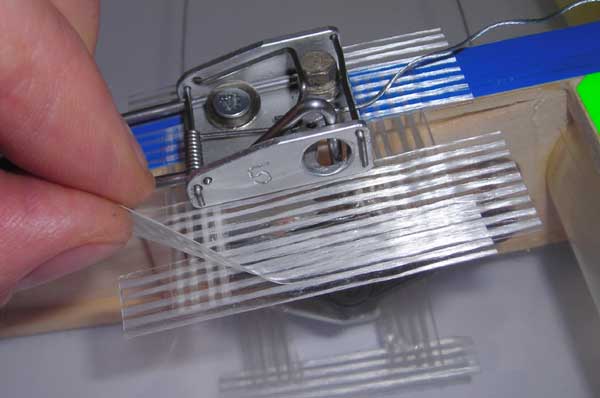

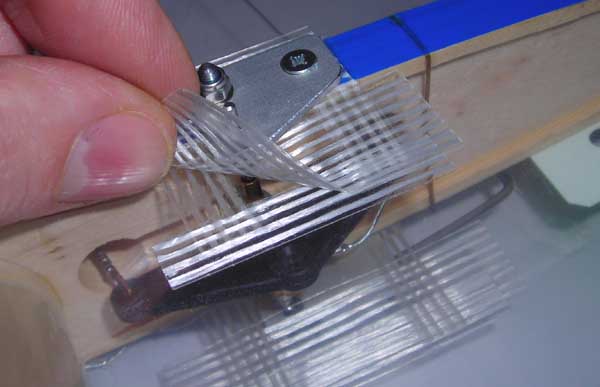

Cover the opening with tape. Leave some space fore the spring to move.

This hole can be covered completely

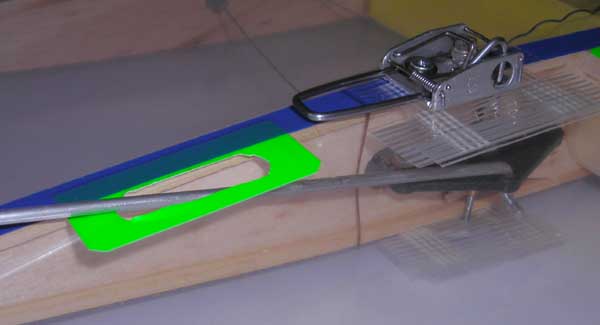

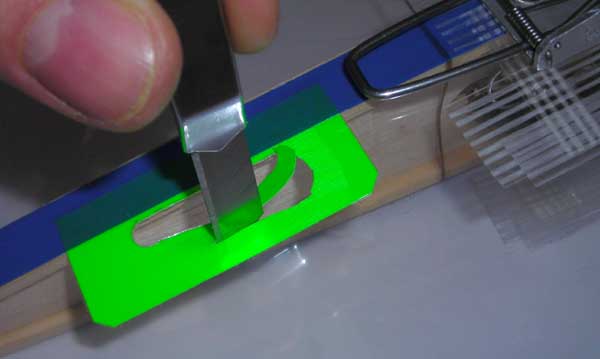

Cut the hole for the pushrod a little wider to allow the movement of the spring

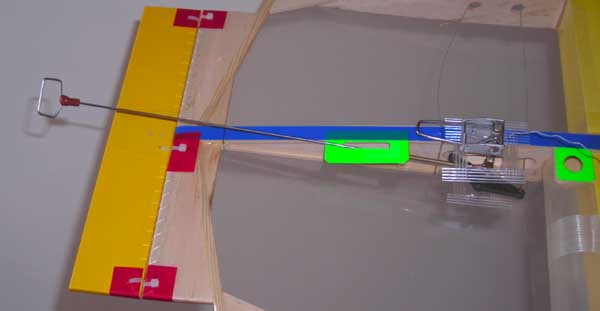

Install the pushrod

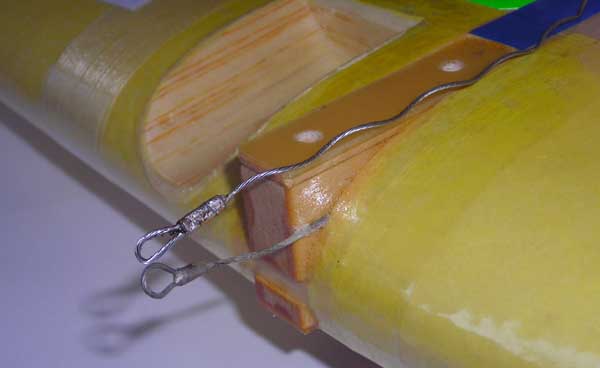

New and original safety wire

With engine and fuel tank. The fuel tube is extended with some extra tube

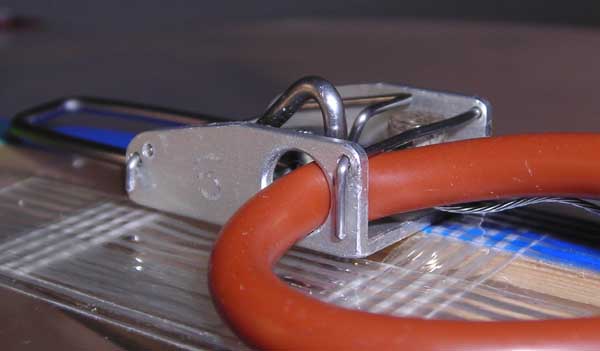

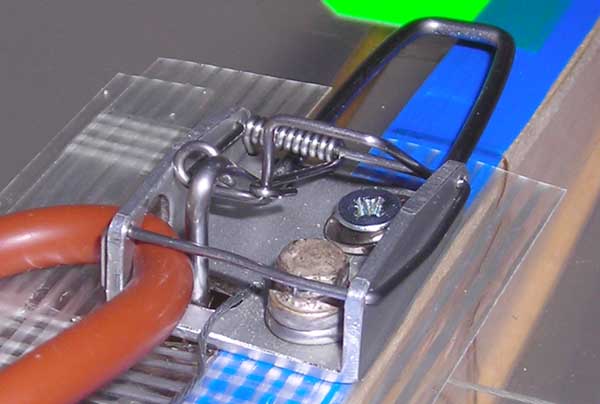

The fuel tube pinched off by the spring

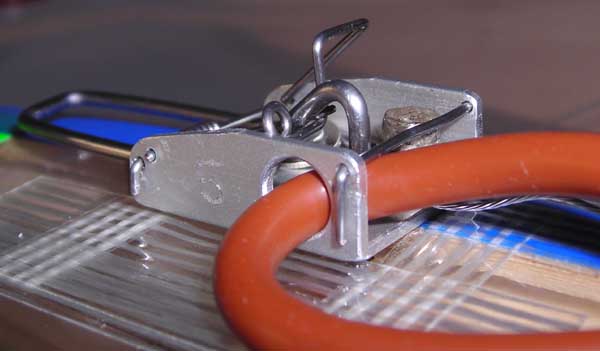

The spring is blocked by the lock

The lock is blocking the spring.
See a small video (divx, 1.1 Mb) with a demonstration of the lock

Ready for the test fight
