Shut-off for F2D-Combat
Czech shut-off system

Update 1/3 2008

At the competition in Sebnits the Czech pilot Pavel Snoza was flying with a shut-off system.

This system is also built with a moving bellcrank and a spring that squeezes the fuel line, but the construction is simpler and with fewer parts.

Nice job !



-
Pavel Snoza at the competition in Sebnitz.

-

-

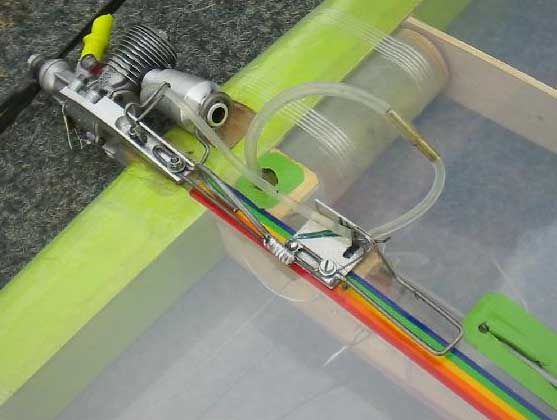

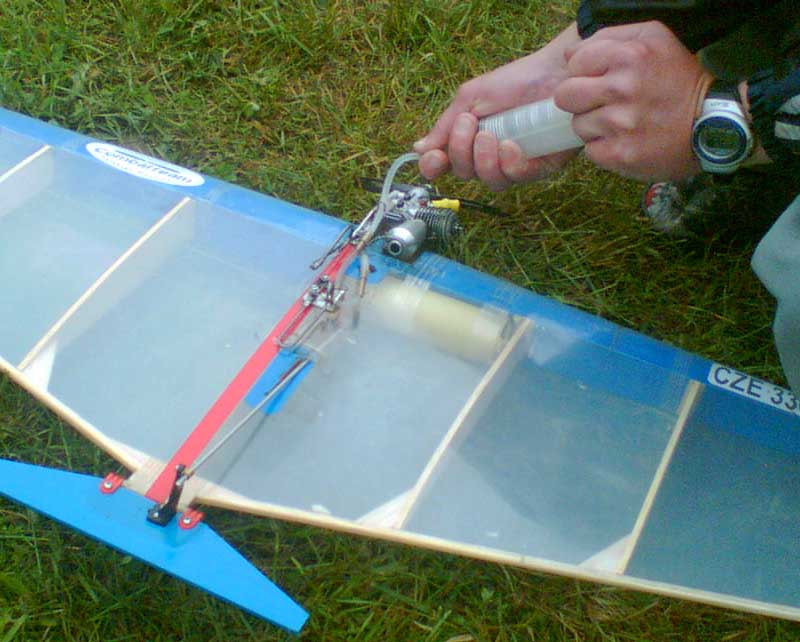

The Czech shut-off system in a model. - More fotos
(Foto from Combatteam Valasské Mezirícírí)

-

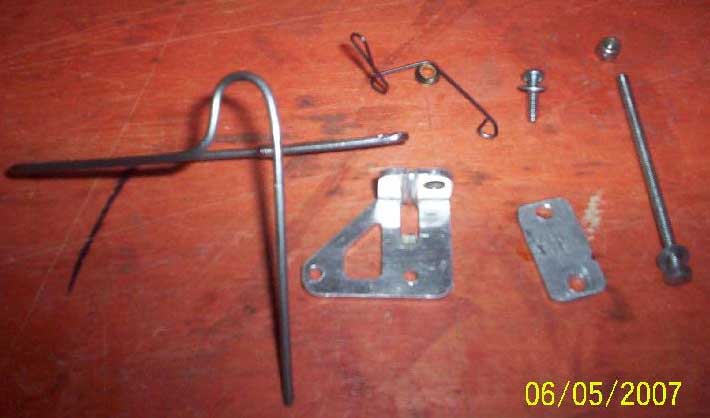

Parts for the Czech shut-off. - More fotos
(Foto from Combatteam Valasské Mezirícírí)

On the Combatteam Valasské Mezirícírí homepage you also find a forum (only in Czech language!)
This online Czech to English translator might be a help.




Update 15/10 2008:

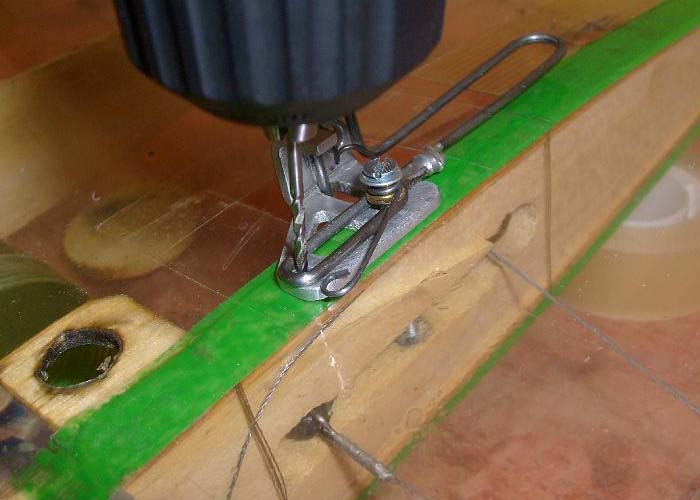

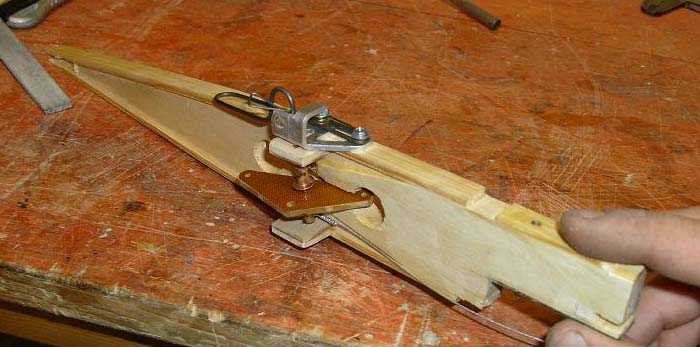

How to rebuild the model
(Foto from Combatteam Valasské Mezirícírí)

Video clips: Demonstration of the system - Let-go-of-the-handle test

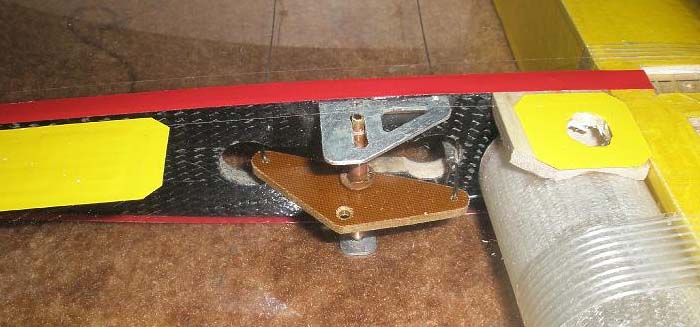

Carbon center section with Shut-Off
(Foto from Combatteam Valasské Mezirícírí)




Update 1/3 2002:


Photos from Combatteam Valasské Mezirícírí
