Shut-off for F2D-Combat
First experience with a simple shutoff system

In the early spring 2006 I rebuild a Yuvenko model with a simple shut-off system.
This shutoff system was inspired by Bob Mears. See the photo album at Combat-1

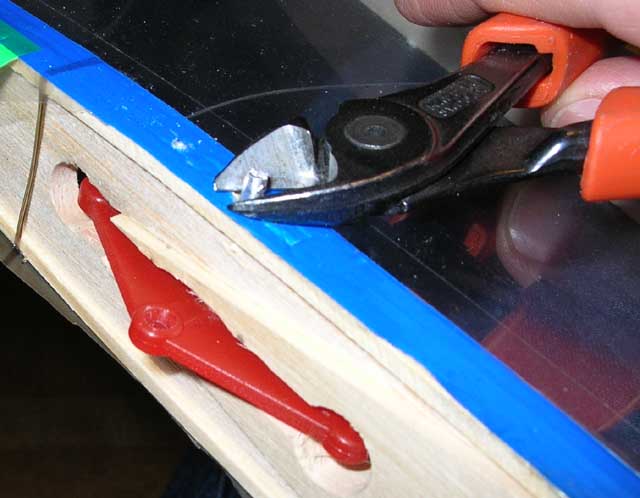

Den orginale alu-stang fjernes

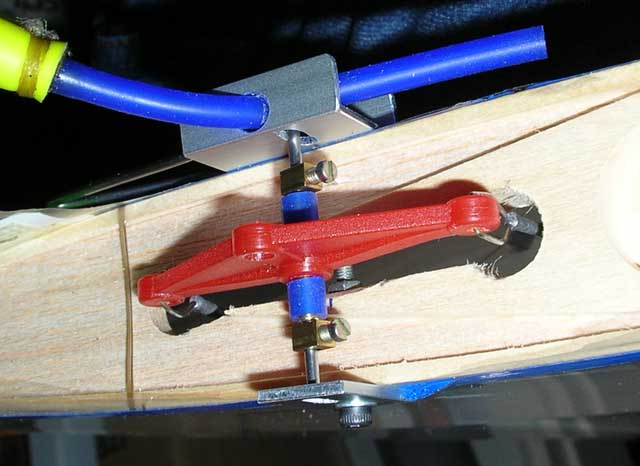

Nyt ophæng uden linetræk

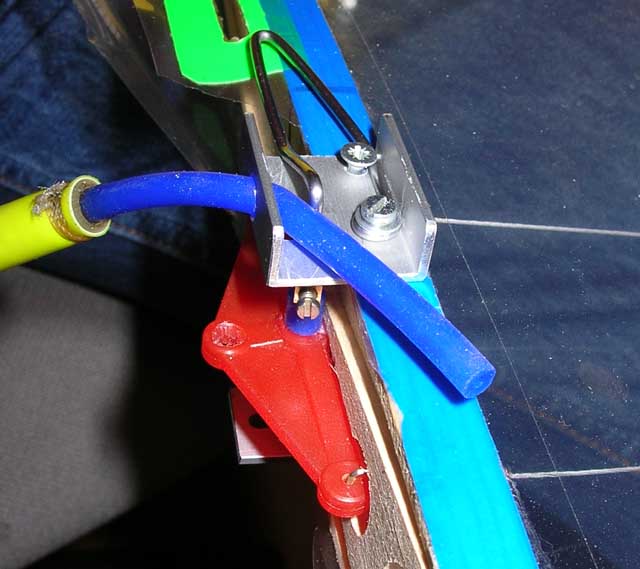

Nyt ophæng med linetræk

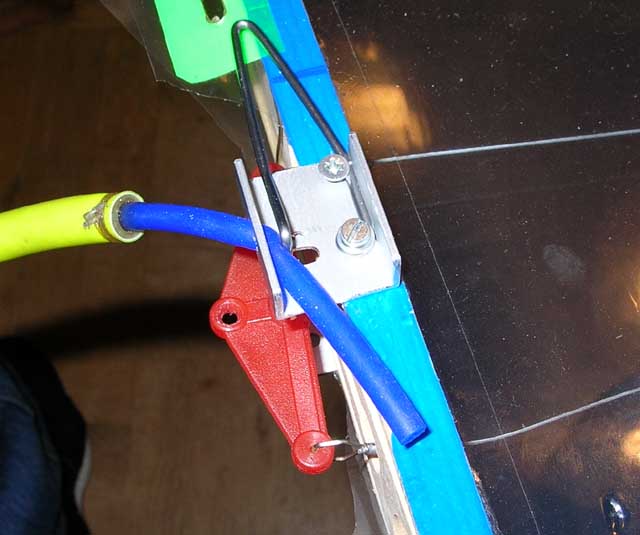

Nyt ophæng med linetræk

Test at the flying field, 26. March 2006:

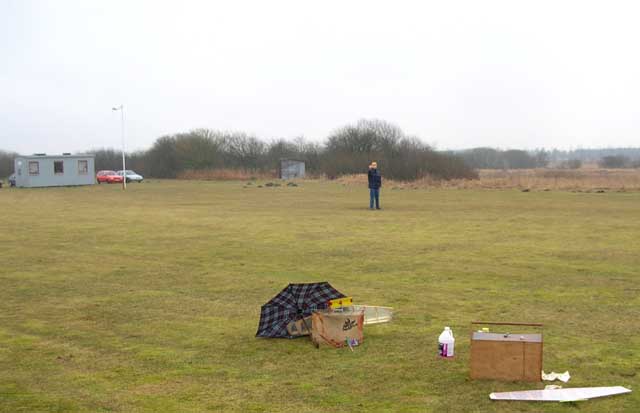

FlyvOp i Herning

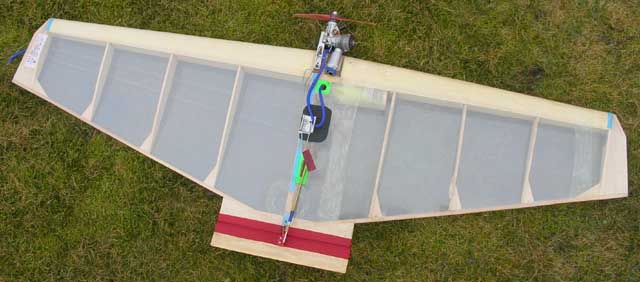

Model til test

Videos from the test:

First the classic way to stop the engine.
The mechanicer squeeze the fule line: (divx, 485 Kb) (wmv, 107 Kb)
Time to stop: 1.5 seconds

Manual release of the shutoff: (divx, 1.3 Mb) (wmv, 292 Kb)
Time to stop: 1.6 seconds


Simulation of a line brake: (divx, 764 Kb) (wmv, 181 Kb)
Time to stop: 2.0 seconds
