Shut-off for F2D-Combat
Spanish Shut-off systems



Last update: 19/8 2015

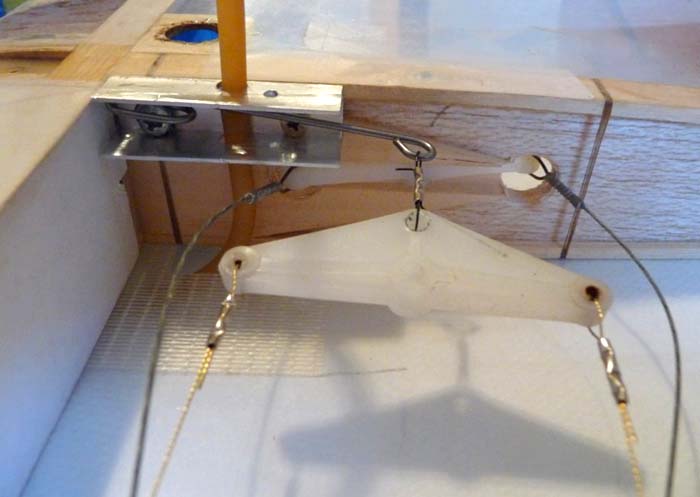

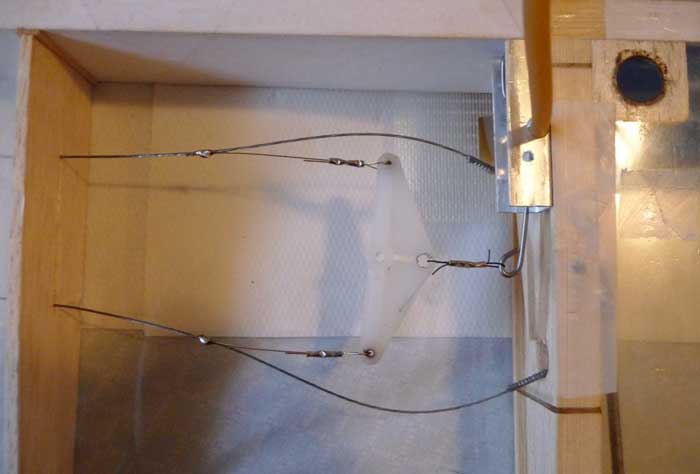

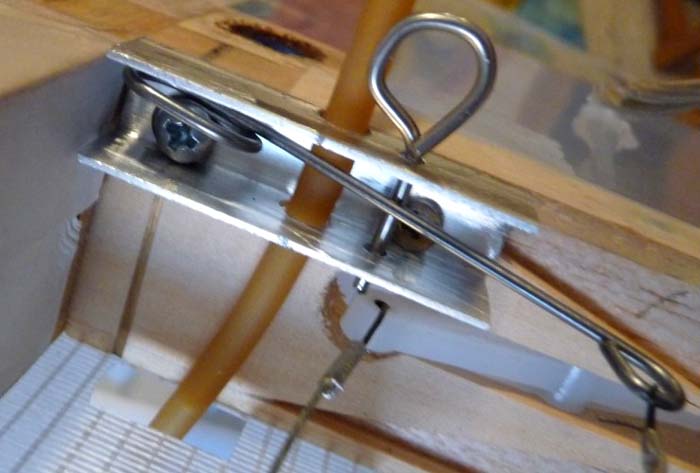

A "String-inside-the-Wing" shut-off that is very easy to install on RPF models.

Design by Francisco Mons

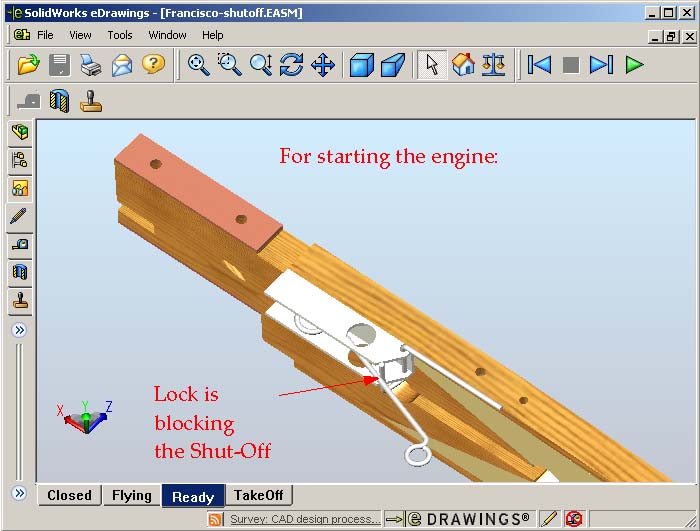

An idear for a automatic lock for this system

Yuvenko shut-off type 2: - New shut-off system from Yuvenko








Bonus: An idear for a automatic lock for this system



Download and unzip this 3D model (5 Mb)


Update !

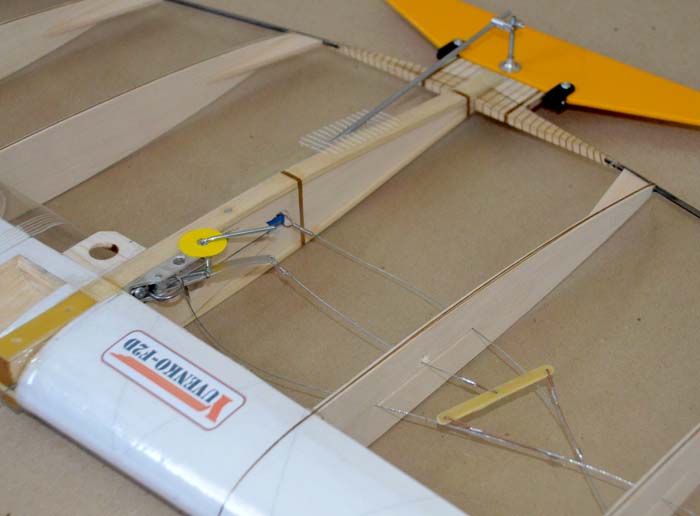

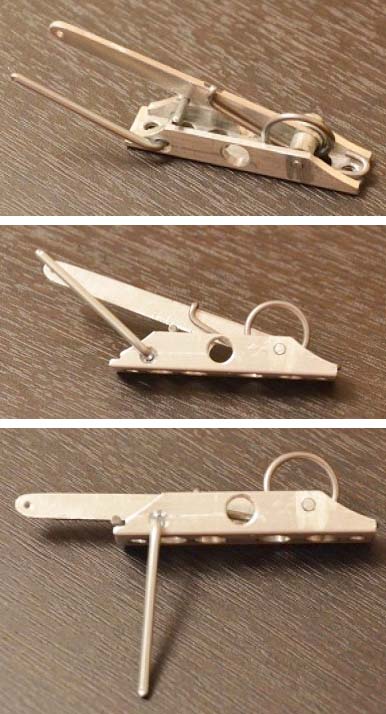

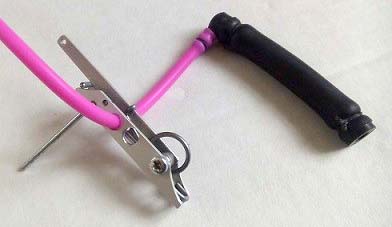

New shut-off from Yuvenko!

It is now possible to buy a new shut-off system from Yuvenko.
This shut-off is based on the design from Francisco Mons but with the small swing arm lock described above.

In the Yuvenko web shop the shut-off is named: "Shut-off type 2"


    All photos from Yuvenko-F2D.com



    Photo by Vasily Yuvenko
