Shut-off for F2D-Combat
Bjerager system



Last update: 13/4 2009

Design by Ole Bjerager

Moving bellcrank shut-off with activation based on a mini swing-arm.

This system looks much like the Forbech 2009 design but there is an important difference.

The metal arm that pinches the fuel line is not a spring. It is a free moving part made from soft steel. It is turning around a hole in the center section and the bellcrank is attached to the other end.
The small spring on top of the center section is actually the spring that moves the bellcrank and pinch the fuel line. This construction eliminates the bottom plate.




Ole Bjerager

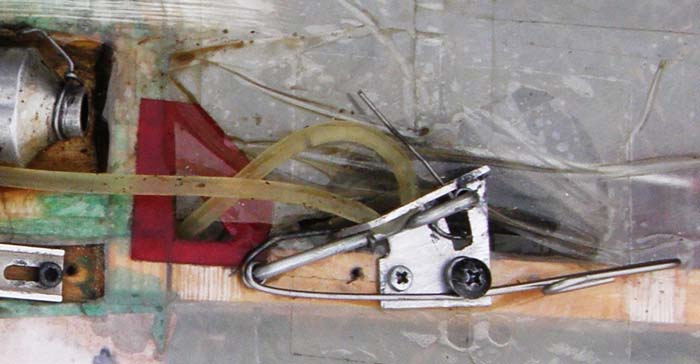

Moving bellcrank design. Activation by a mini swing-arm

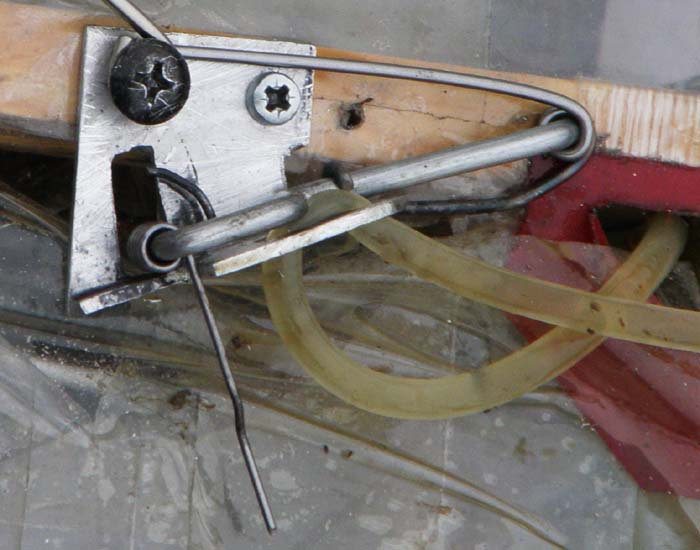

The spring force the arm to pinch the fuel line

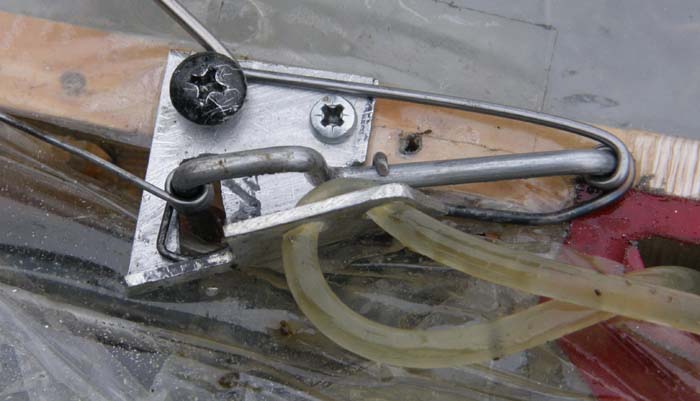

Arm and spring blocked by the mini swing-arm


Freezing pilots at the Penguin test site

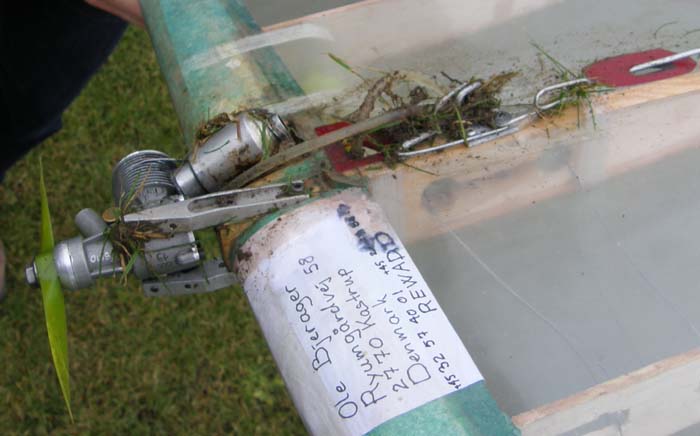

A new test: Hard landing from inverted flight!
