Shut-off for F2D-Combat
Kalmykov Shut-off

Valve shut-off with swing-arm

By Aleksandr Kalmykov, Cyclon

Last update: 4/7 2010







Specification:
By Aleksandr Kalmykov
  1. Construction: needle valve - 100% don't leak fuel
  2. Can be use for start engine (you don't need in hook for fuel stop ).
  3. Weight 13 g.

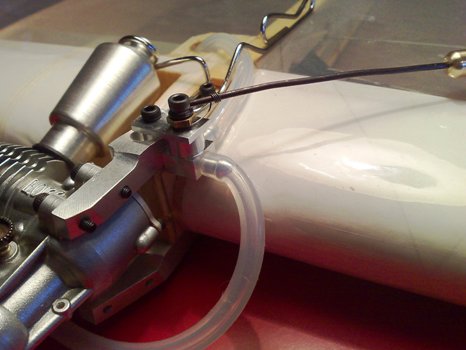

  4. Mounting - one bolt to standard F2D model. You don't need in modification any parts of F2D model or engine or control line system.
  5. Refueling - as 2 years ago - in tube from needle valve of engine.
Contact:
Aleksandr Nikolaevich Kalmykov
pr.Dzerjinskogo 2-67
Novosibirsk 630112
Russia
mobil phone: +7 913 910 6541
https://www.rusengines.ru/
More info:

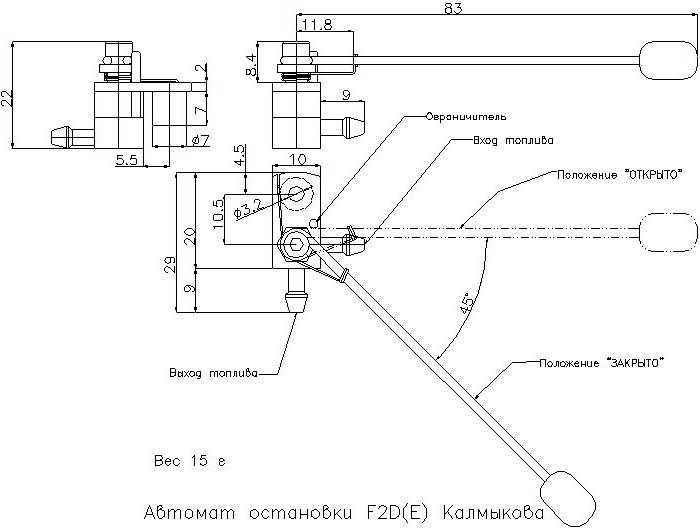

The shut-off work the same way as a needle valve. The "needle" have standard M6x1 thread and close a ø1.2 mm hole

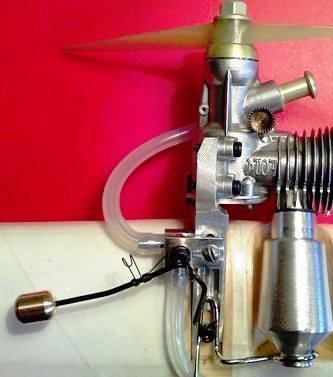

Open

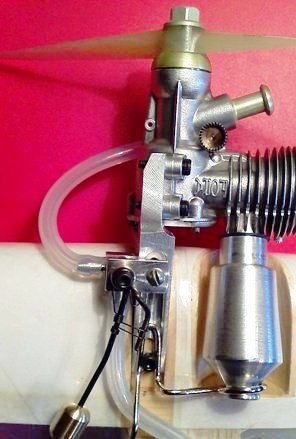

Closed

Aleksandr Kalmykov
pr.Dzerjinskogo 2-67
Novosibirsk 630112
Russia
mobil phone: +7 913 910 6541
https://www.rusengines.ru/?lang=en
