Shut-off for F2D-Combat
Italian Shut-Off by Ettore Mancini





Last update: 5/2 2009
New build in instruction
New let-go-of-the-handle video


Ettore Mancini

Ettore Mancini from Italy has designed a very nice shut-off system.

It can easily be retrofit into you existing models or build into new models. The best part is that he is going to make a small production for sale !

Contact Ettore Mancini for more information.

Update: AA F2D SHUT OFF 2010


Ettore Mancini:

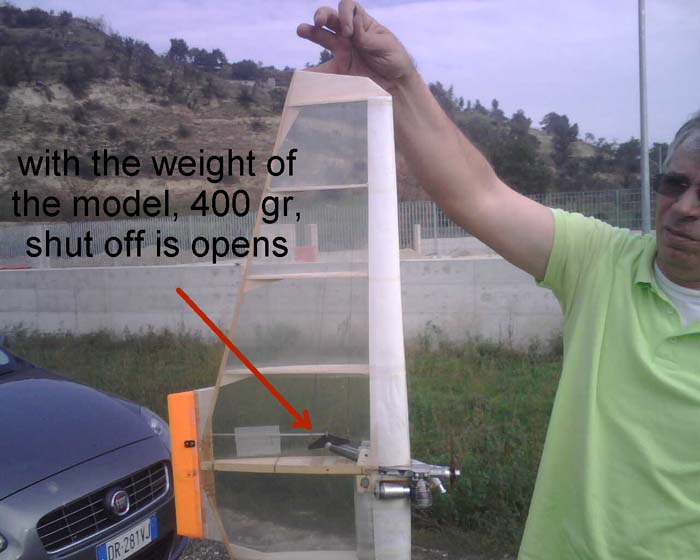

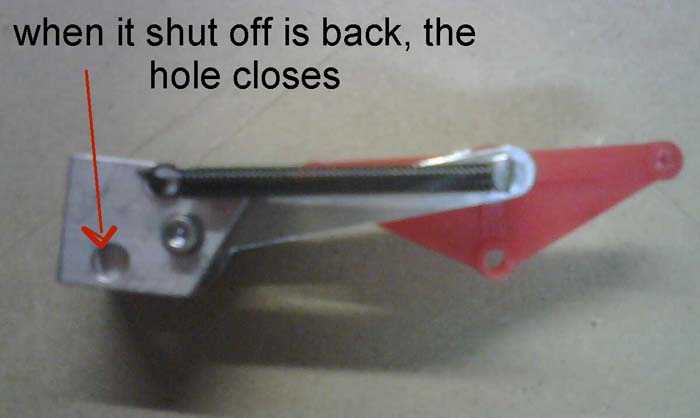

This mechanism works with the concept of levers and arms rotation, in practice, the strength of the spring is reduced by 1/5 and then at 400 g tractive mixture of the tube is closed with a force of 2000 g.

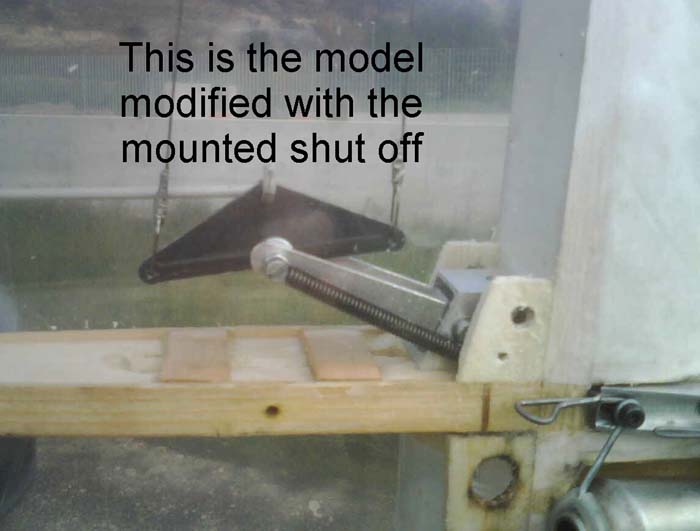

The total weight of the shut off is 25 g and not change the behavior of the model because it is mounted on the center of gravity.

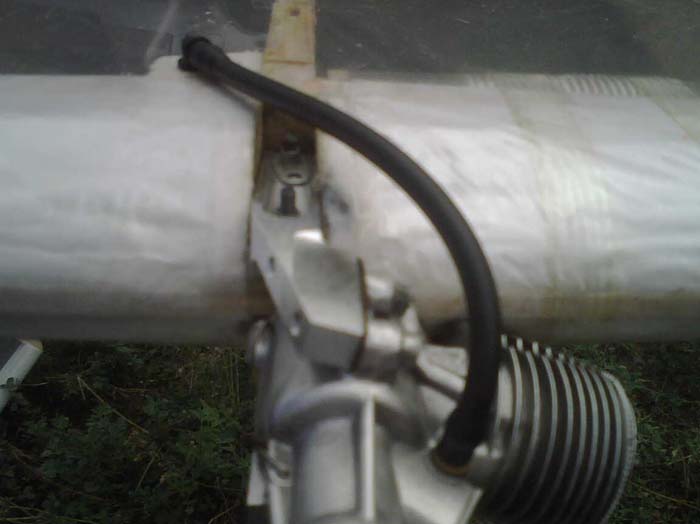

To mount the shut off it is enough to make two 3 mm holes on the central rib.

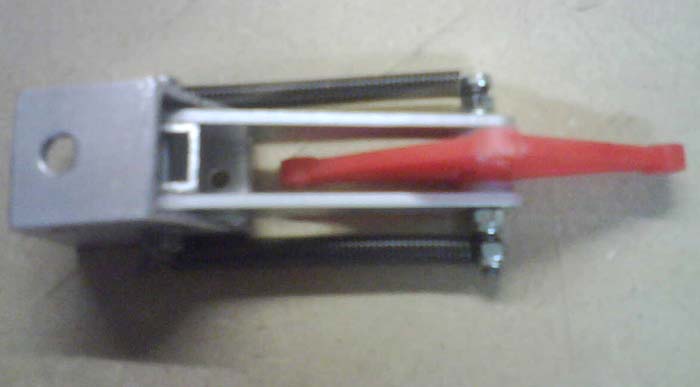

The concept of the system is simple but it is very difficult to build the wings with the right cams.
That is why I designed them and I made the laser cut so that the components work well.

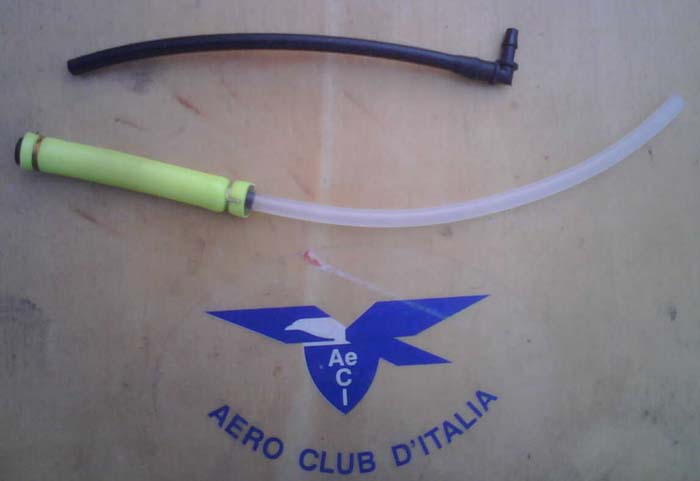

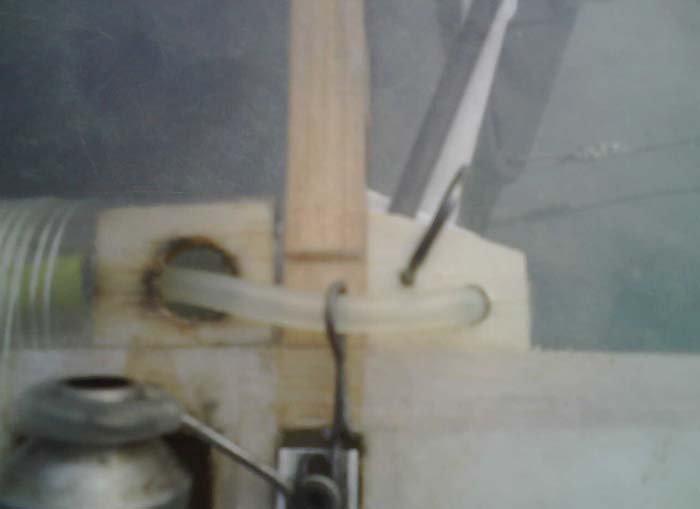

To block the open system with one hole with a 2 mm pin steel threads, though careful to #5 photos you can see it near the tube of the fuel.

Before launching the model simply pull the pin and the system begins operation.

I will make a production of 50 pieces for sale at around 20.00 each. 15.00 for more than 10 pieces

Instructions on how to build the shut-off into a model (pdf) and New build in instruction (pdf).

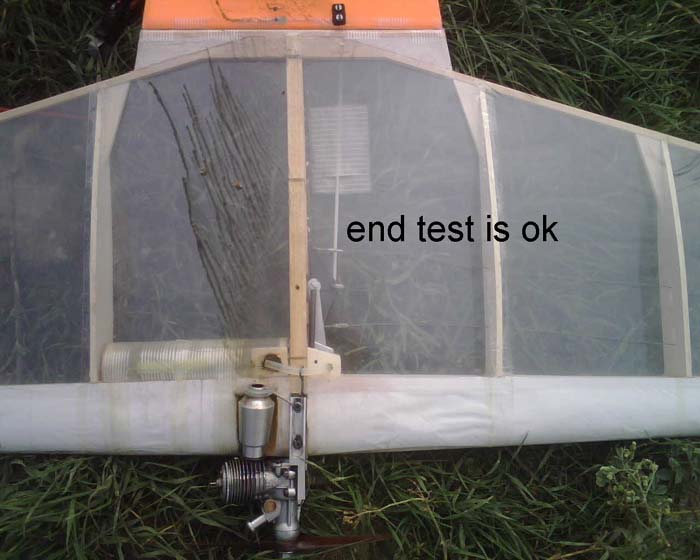

See the test flight and the "let go of the handle" test:
