Shut-off for F2D-Combat
Shut-off system by Bob Mears



Last update: 3/7 2009

Bob Mears shut-off system

Images and text by Bob Mears.

All information is from the "Photos" section on the Yahoo Group "Combat-l".

Bob may produce this shut-off as a kit. More info at the bottom of this page or at "Combat-l"



Bob Mears in his Spitfire

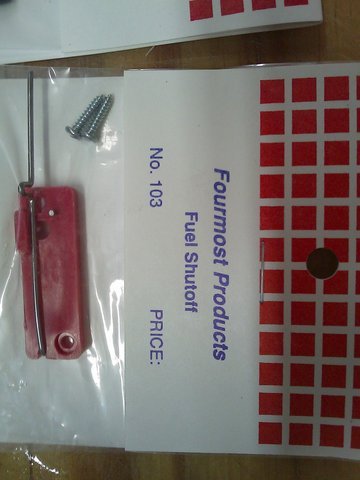

Formost parts


Formost Shutoff


Formost Manifold


3/16 pvc or plywood


Draw around fomost shutoff

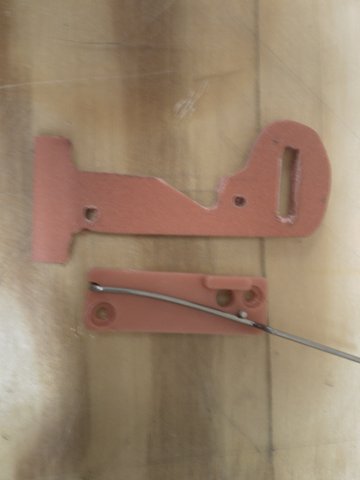

Draw out base plate

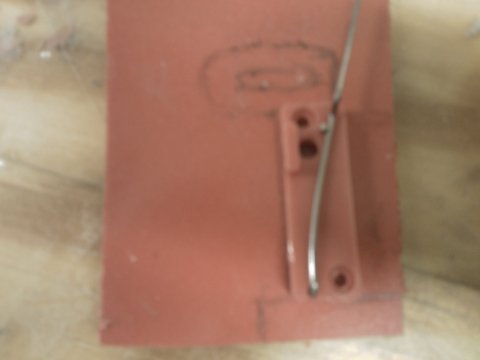

3/16 Base plate


Baseplant with shutoff


Trim off center nipples

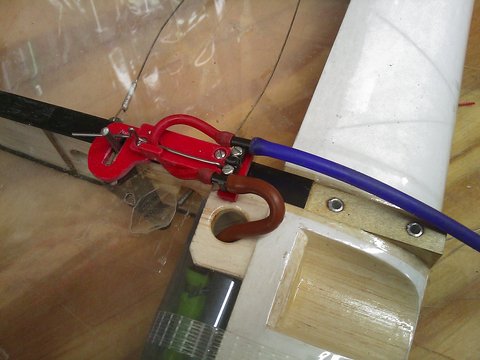

Manifold installed

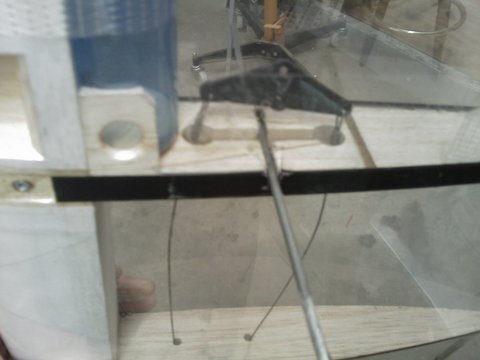

Slot bell crank pin position


Remove old pin, pull bellcrank outboard

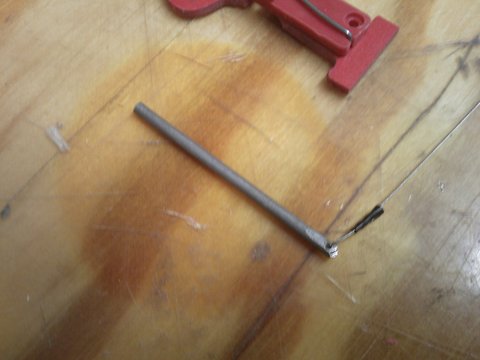

Use old pushrod for pin


Install saftey wire in bottom of pin

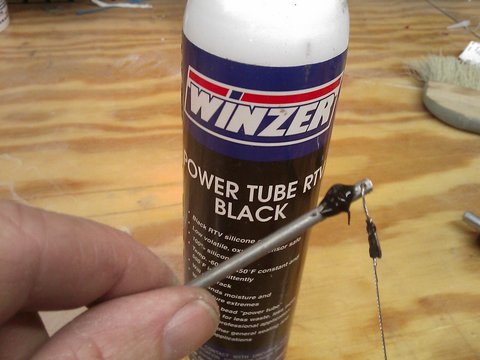

Glue bottom of pin with siliccone


Saftey wire attached to bottom

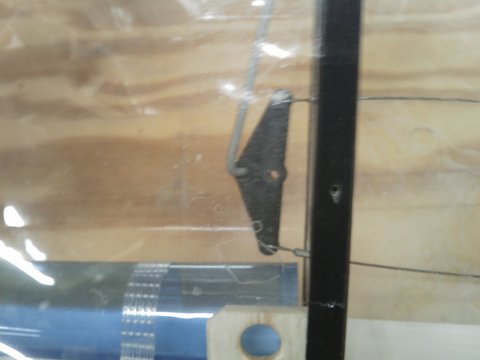

Pivot outboard

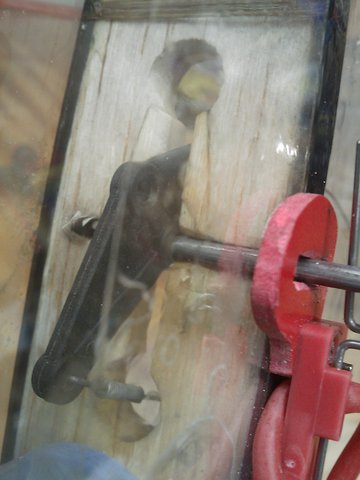

Pin cutout


Let dry in this position


Plumbing


Closed position

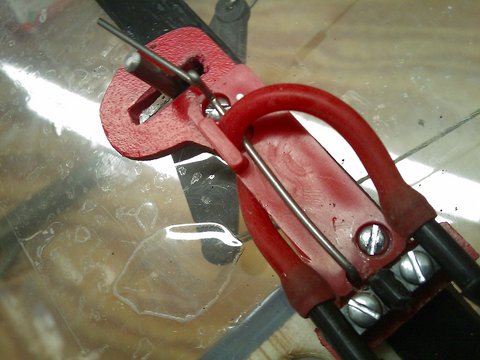

Open position


Another option

Bob Mears:
"How many of you will be interested in a formost type shutoff, in a complete kit, for $30.00 each, or $100.00 for 4? I've got this down to a very simple kit to install in about 10 minutes. I'm having the bottom piece laser cut out of aluminum. I must buy 100 to make it worthwhile. The last thing I need is 100 shutoffs for myself. I've changed it some since the first prototype that is in the photos section. Much simpler now. I've actually hand built 10 for me and they're working great. So I dont even need any now, but I will make the investment if the demand is there."
